Definitely not a small calculator. In inches, it has a height of 23 inch, is 18-inch-wide and 10-inch deep. For fans of the metric system: a height of 58 cm, 46 cm wide and 25 cm deep. Operates with values up to 1024, and can count and multiply, as multiplying can be seen as repeated counting. (5 x 7 becomes 7+7+7+7+7)

Does not use batteries or a solar panel. Does not use any power source at all, except gravity. The numbers are represented with marbles, as well the input values as the result.

I found an example of this principle on the web and I decided to build one myself. With some modifications, as a mechanical calculator needs the look of a machine. And as it uses no electricity, the machine may have an appearance as it could have been used in the 19th century.

(As one goal of the machine was to make people familiar with binary numbers, there is much attention for setting up the numbers)

The movie above does not give any clues away. The movie below will show you the entire principle:





Building the machine

slowmotionflipflop

Most of the building part is easy and can be understood by looking at the pictures. There are only two parts with a little higher range of difficulty: the flipflops and the mechanics to operate the sliders.

At first, the flipflops were entirely made of wood, but reacted a little unpredictable. With sums like 3 + 3, the flipflops need to act very accurate, as the flipflop on line 2 must deal with 3 marbles: one is stored in its memory, one as handed over from line 1, and one comes from the upper slider. To solve the inaccuracy, I added some aluminum strip on top. After this adjustment, all operations became accurate.













The sliders

handle01 handle02

The other part with a higher level of difficulty are the sliders and the handles to move them. Inspired by the old-fashioned cash registers, I’d like a handle for operating the machine. As there are two sliders (a top slider to make it easy to place a value, and a result slider to hold the marbles on the sum-line) which work together, I’ve used two handles: a “count-up” handle, which adds the marbles to the central part of the machine (you can call it memory), but also opens the lower slider to let marbles pass which are no longer needed in the memory. As you store two marbles after each other on the row with value “1”, only one marble on the row with value “2” is needed in memory: the other falls down, and as the result slider is open, it won’t stay on the sum-line but falls down to the marble reservoir. The second handle shows the result, by closing the lower slider, and turns all flipflops to their start position. If a flipflip was holding a marble, it will fall down, and remain on the sum-line. There you can read (or count) the result of the sum.

As the upper slider is always closed when no handle is used, it has a spring that automatically close the slider. The lower slider remains in its last position. (Actually always open, except when a result must be shown)

The movement of the handles is transferred by nylon rope and handmade pulleys. Pulleys are not necessary, but an easy way to keep the rope where it belongs. As the accuracy is not 100% (all had been sawn by hand, I have no CNC router), it turned out to be a little problem to turn all flipflops to their original state. To solve that I used some thick copper-wire between the hinging unit and the plug of the flipflops.





Pictures

Photoalbum wooden marble calculator_

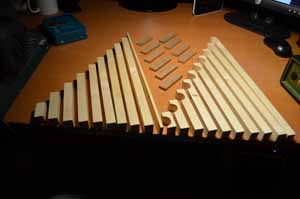

The first parts of the lanes

Photoalbum wooden marble calculator_
These blocks align and slow down
the marbles.

Photoalbum wooden marble calculator_
Use solid wood, as there will be a weak
spot.

Photoalbum wooden marble calculator_
Something need some sanding...

Photoalbum wooden marble calculator_
The flipflops were printed on paper and
glued on the wood.
Photoalbum wooden marble calculator_

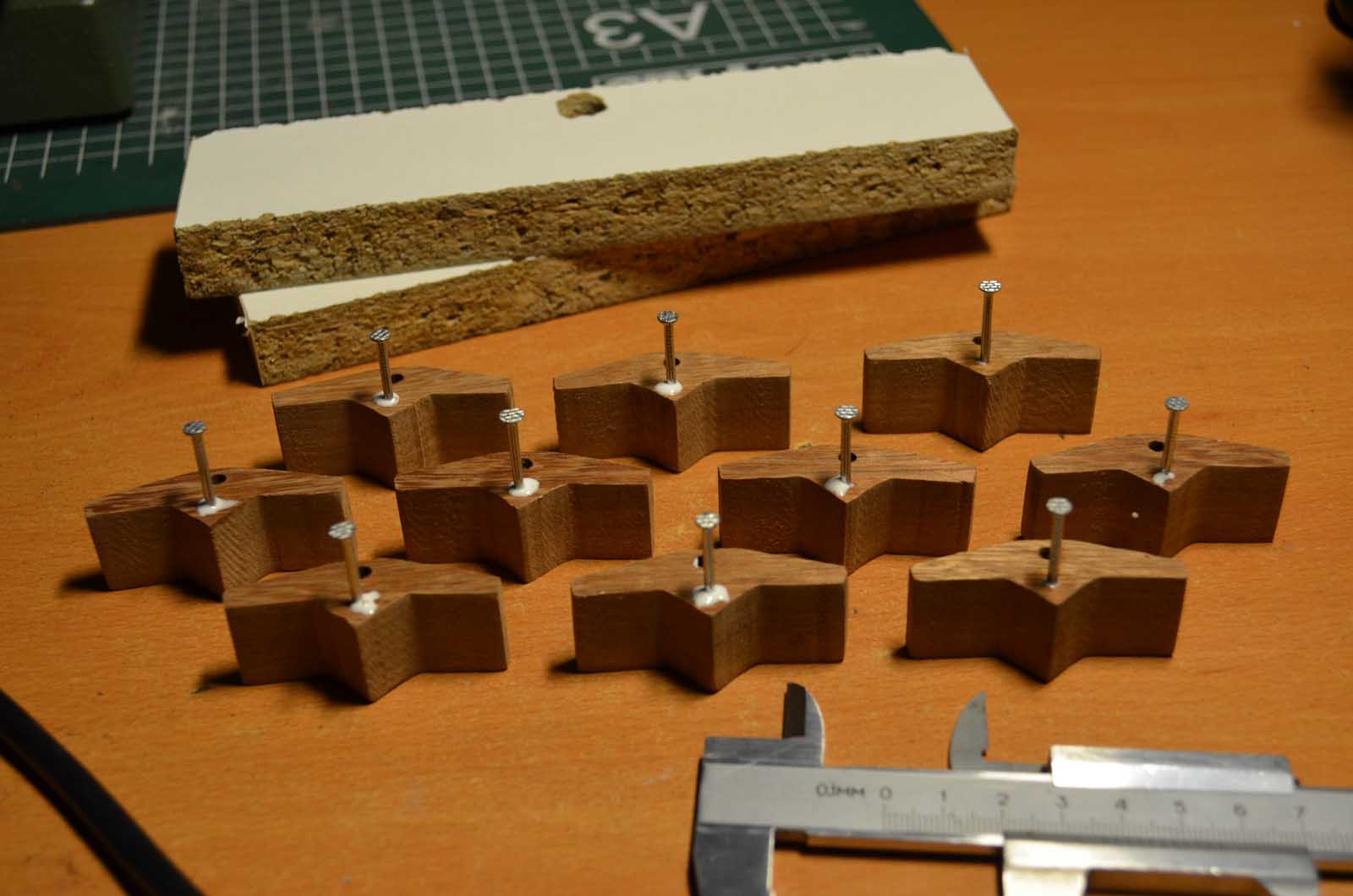

All flipflops with their reset pin glued in.

Photoalbum wooden marble calculator_
And with their axes attached.

Photoalbum wooden marble calculator_

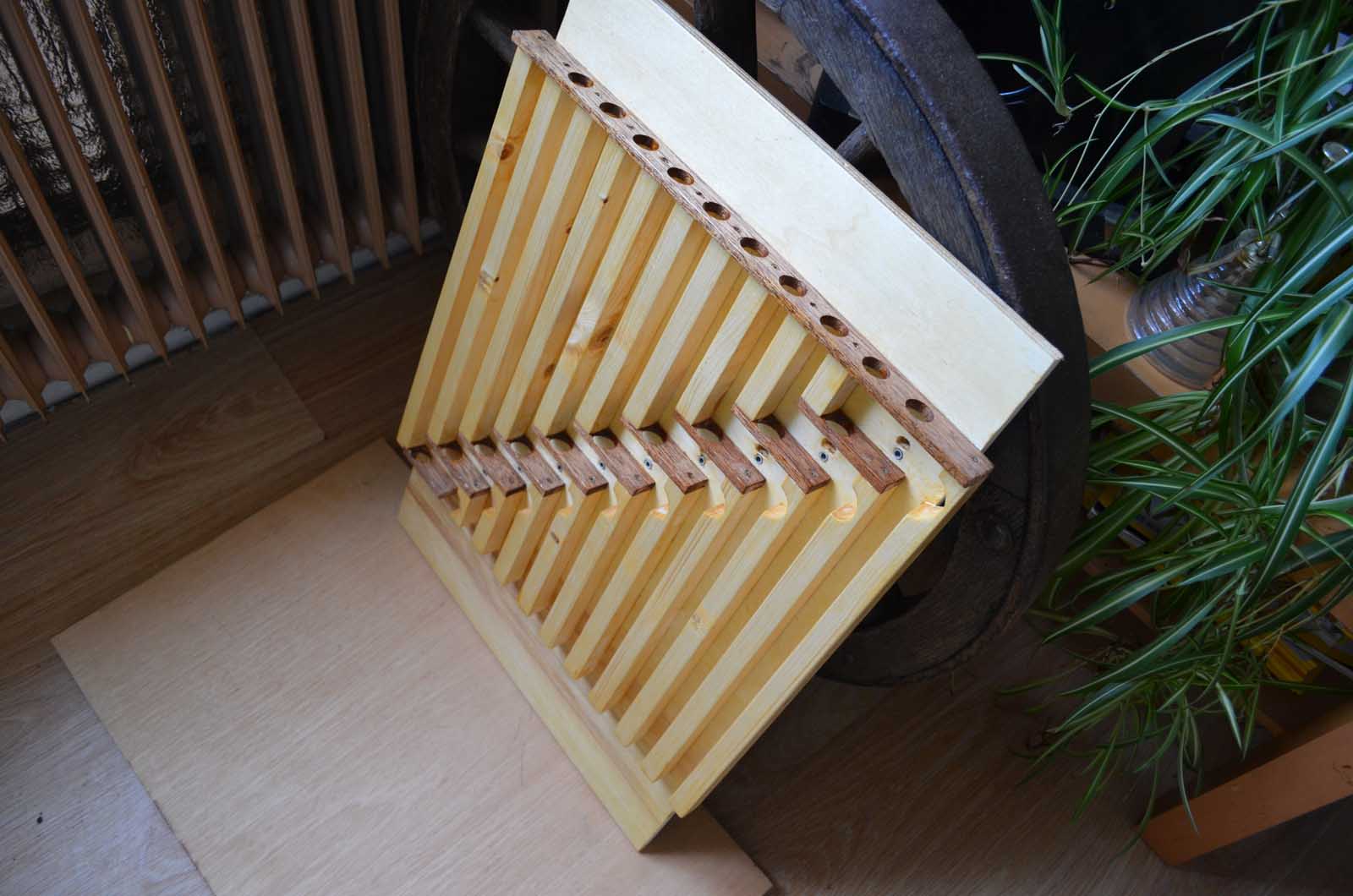

Assembling the lanes.

Photoalbum wooden marble calculator_
And the main deck contains all parts.

Photoalbum wooden marble calculator_
Drawing the sliders.

Photoalbum wooden marble calculator_
Sawing of the holes

Photoalbum wooden marble calculator_
The most down lath is meant to move to
the marble reservoir.

Photoalbum wooden marble calculator_
The resultslider is not placed, but you
can see the slit ment for it.
Photoalbum wooden marble calculator_
Front side view

Photoalbum wooden marble calculator_
The making of the part to reset the
flipflops.
Photoalbum wooden marble calculator_
The marble dispenser.

Photoalbum wooden marble calculator_
The handles.

Photoalbum wooden marble calculator_
The flipflop-reset mechanism.

Photoalbum wooden marble calculator_
Decorating the front panel.

Photoalbum wooden marble calculator_
It's a combination of wood burning and
some paintwork.
Photoalbum wooden marble calculator_
The inside view of the fixation of the
handles.
Photoalbum wooden marble calculator_
The attached and unpainted handles.

Photoalbum wooden marble calculator_
The springs to reset the handles.

Photoalbum wooden marble calculator_
The disks will be used to attach the rope
to operate the sliders.
Photoalbum wooden marble calculator_
The "reset-your-flipflop-system".
Photoalbum wooden marble calculator_

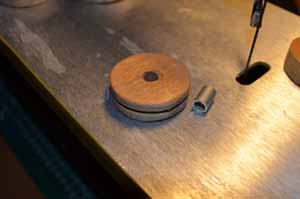

Wheel of a pulley.
Photoalbum wooden marble calculator_

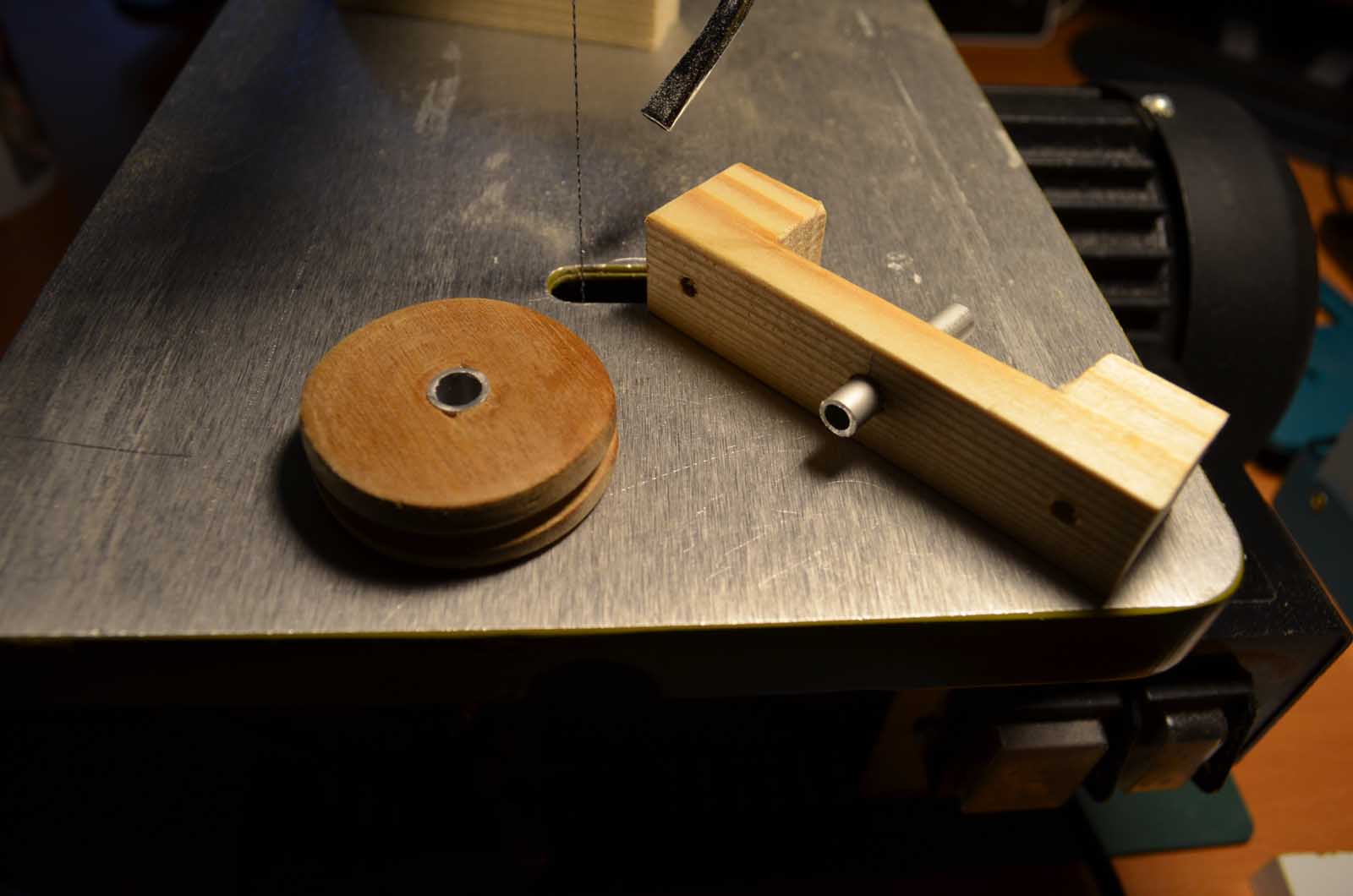

One of the pulleys almost ready.
Photoalbum wooden marble calculator_
As they do not move much, I used
aluminum busses.
Photoalbum wooden marble calculator_
The other side of the axis ends in a hole
in the outer case of the calculator.
Photoalbum wooden marble calculator_
Pulley one is ready!

Photoalbum wooden marble calculator_
The second one also...

Photoalbum wooden marble calculator_
And the corner-pulley is also ready.

Photoalbum wooden marble calculator_
Taking over the numbers on a piece of
wood with a burner.
Photoalbum wooden marble calculator_
Placing the numbers on the front.

Photoalbum wooden marble calculator_
The upper numbers are burned on a very
thin piece of wood.
Photoalbum wooden marble calculator_
Flipflops attached, and checked for
smooth movement.
Photoalbum wooden marble calculator_
Attach the rope between the disks and
the sliders.
Photoalbum wooden marble calculator_

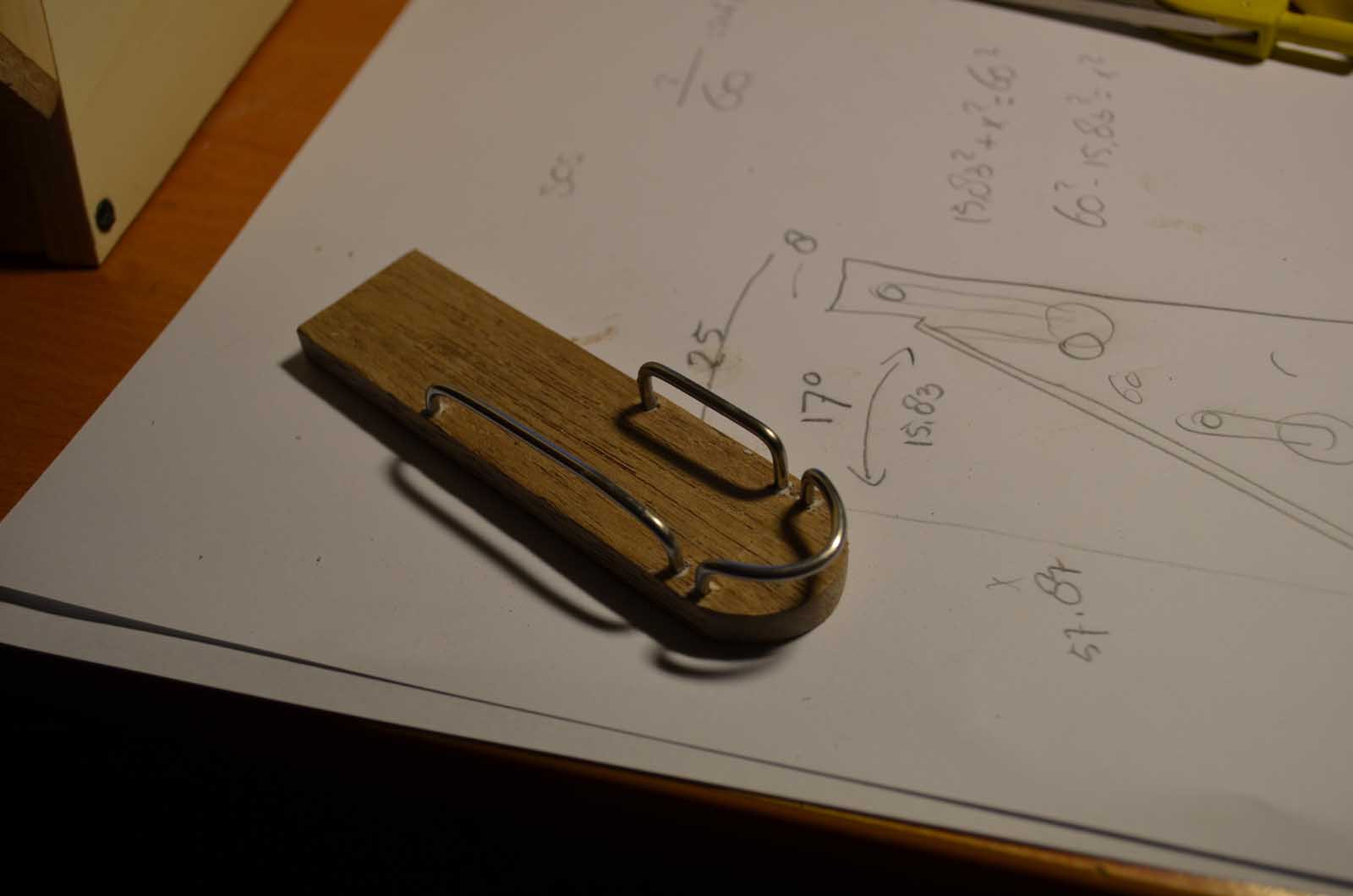

Calibrating the "flipflip-reset-system" by
bending the copper wire.
Photoalbum wooden marble calculator_
The upper disk operates both sliders,
the lower only the result slider.
Photoalbum wooden marble calculator_
Complete overview from the inside.
Photoalbum wooden marble calculator_
And the outside!
